Aluminium-Shelter

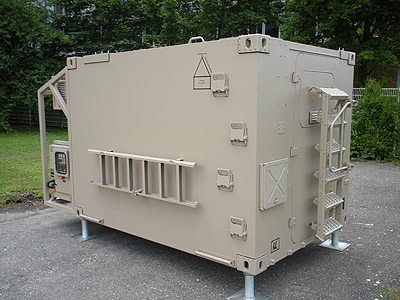

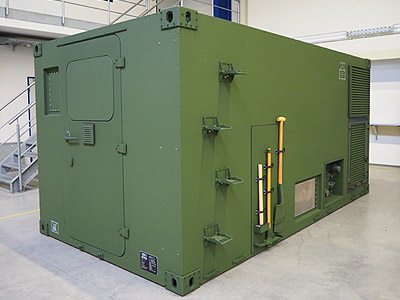

The Aluminium-Shelter is universally designed in such a way that it can be used for a variety of applications, e.g. in the communication and telecommunications sector. More than 10,000 Aluminium-Shelter have been delivered in recent years and are ideally suited for mobile and stationary use.

The Aluminium-Shelter is available in two variants as basic versions in several sizes:
    - Type A: Unschielded Version
    - Type B: With integrated HF shielding.

Type A is designed to allow simple retrofi tting of the HF shielding of type B.

These shelters can optionally be provided with integrated or adaptive ballistic protection. Additionally, the shelters can be equipped with an NBC ventilation-protection system.

With proper handling and when observing the maintenance and service intervals, the shelters, their construction and quality craftsmanship, are designed for a service life in excess of 20 years.

In the ZMS standard or when designed to customer requirements, the Aluminium-Shelter are flexibly usable as:
    - Telecommunication stations
    - Control stations
    - Radio stations
    - Relay stations
    - Weather stations
    - Server stations

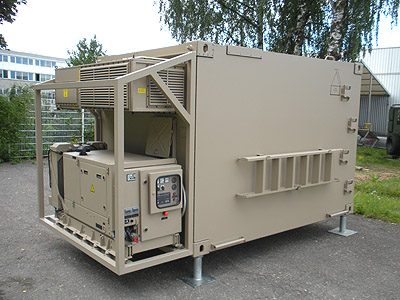

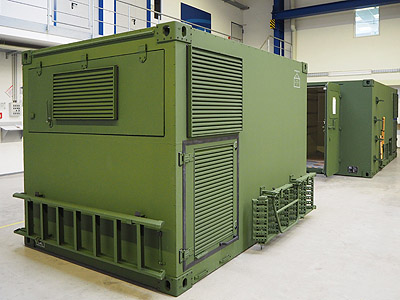

Apart from the individual system integration (EDP, rack installation, communication technology, etc.), the customer-specific equipment includes the integrated power supply, lighting and air conditioning.

The ZMS basic equipment includes:
    - Shelter cell with integrated reinforcements in roof, floor and walls for interior fastening
      points and the installation of rigid skids
    - Complete equipping of fittings
    - Fastening rails in roof, floor and walls

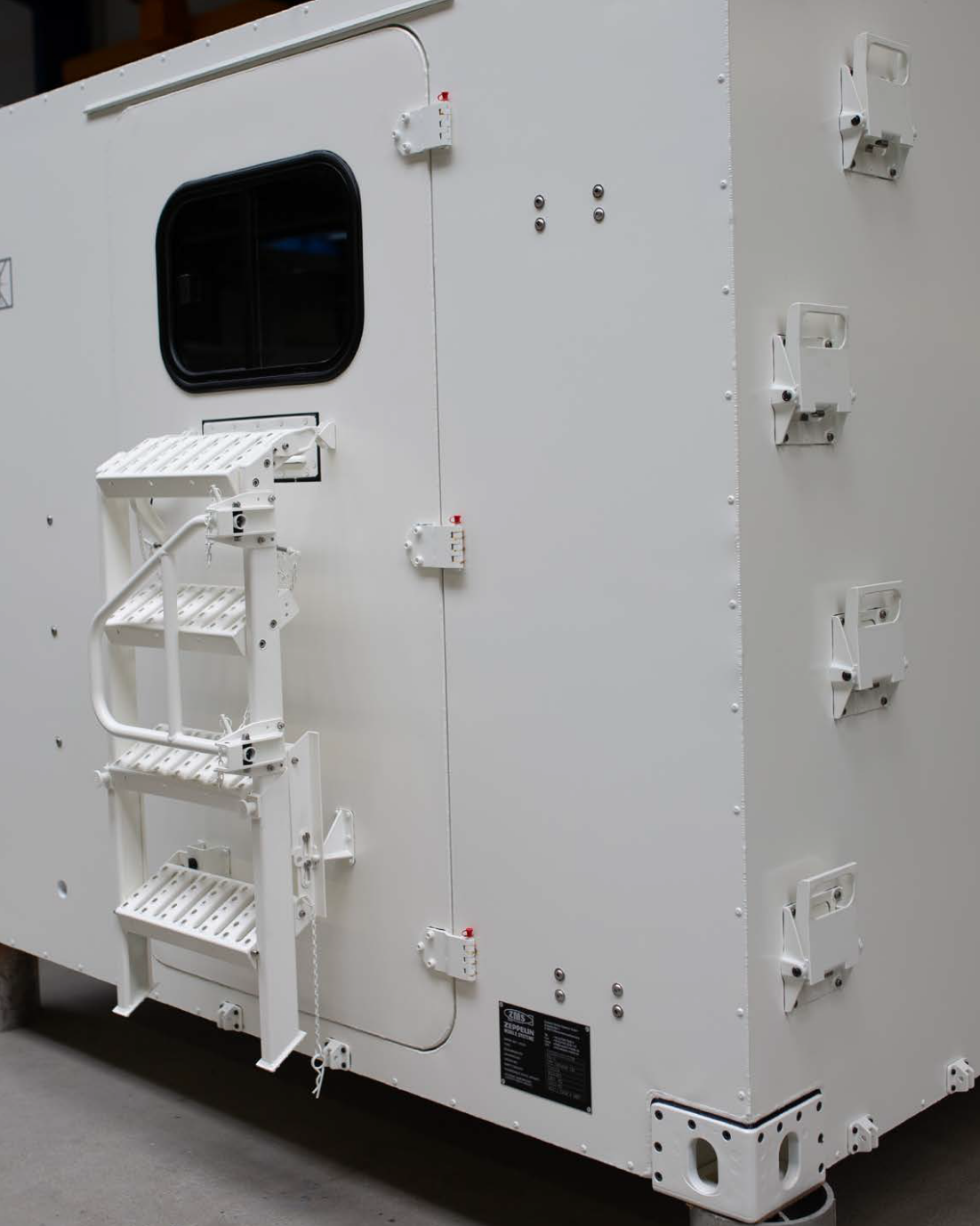

    - Entrance door in the rear wall
    - Emergency escape hatch in entrance door or roof

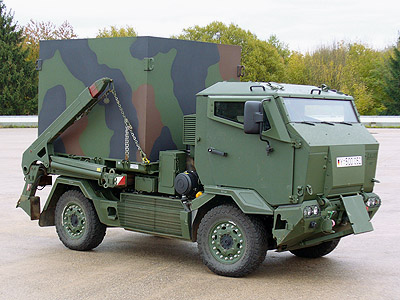

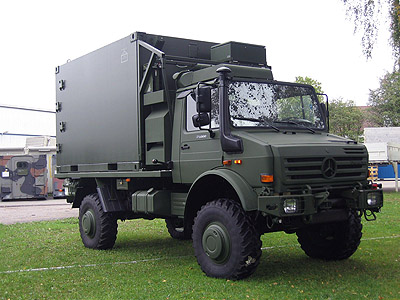

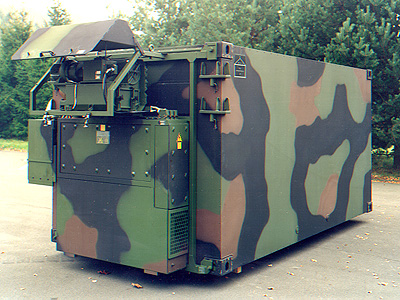

The Aluminium-Shelter can be operated on a vehicle as well as on the ground. Individual configuration options of the cabin shelters for vehicle-based use guarantee a high degree of flexibility.

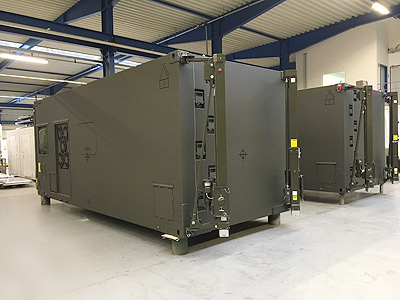

Aluminium-Shelter are available in a variety of standard dimensions. Customer-specific dimensions and versions are possible.

Technical Data:

Standard dimensions (overall dimensions incl. corner fittings)

Type                          Length                  Width                  Height

>   ACE I (FM 1)          2,990 mm             2,050 mm           1,825 mm
>   ACE II (FM 2)         4,250 mm              2,200 mm            2,075 mm
>   ACE III                    5,000 mm              2,200 mm           2,075 mm
>   NATO I + II             3,810 mm               2,080 mm            2,110 mm
>   10'                           2,991 mm               2,438 mm             2,438 mm
>   15'                            4,541 mm                2,438 mm             2,438 mm
>   20'                           6,058 mm              2,438 mm             2,438 mm

Dead weight (depending on version):     approx. 1,000 kg - 2,500 kg
