ZEPPELIN-Shelter Series 2:1

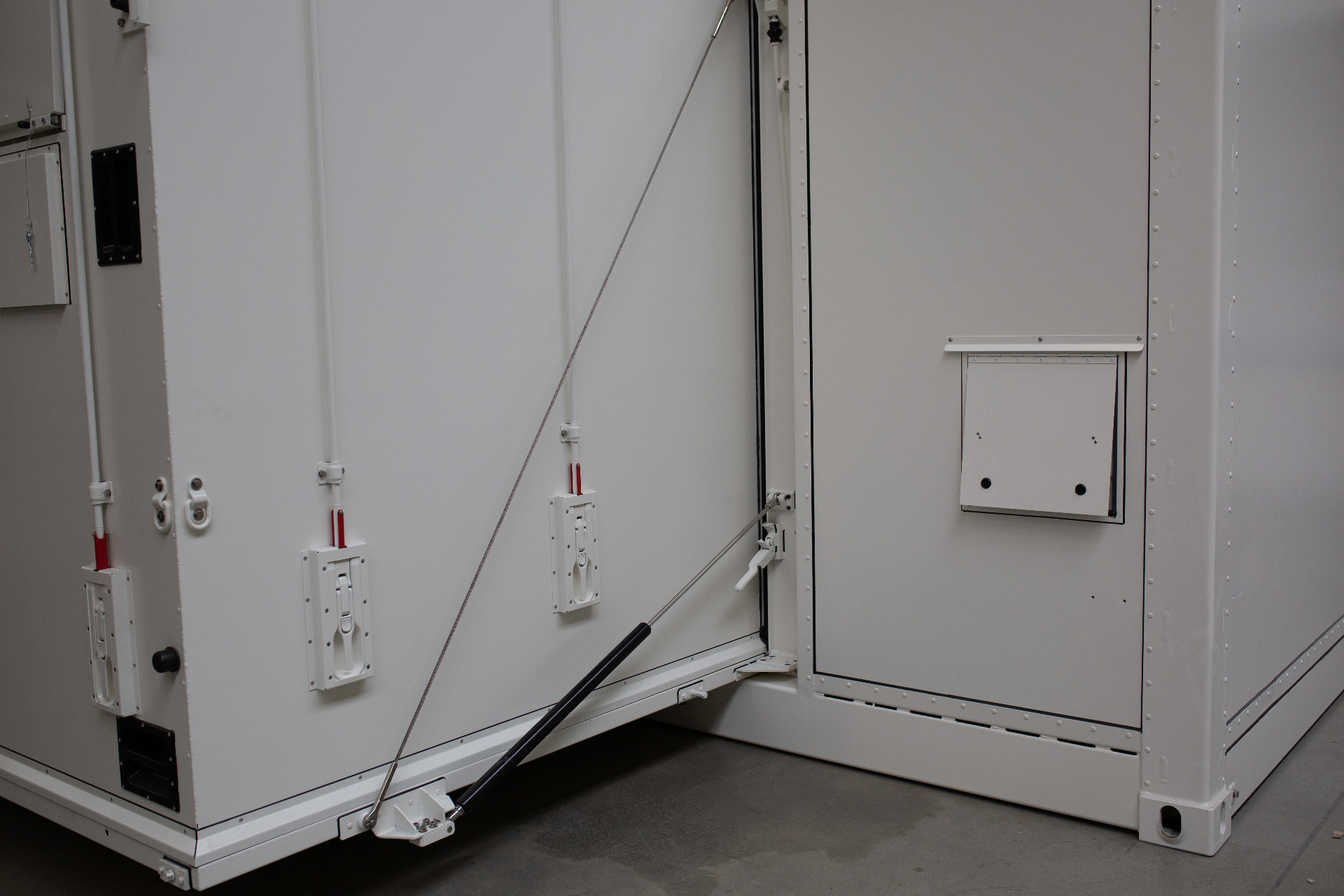

Measuring approx. 18 m², the ZEPPELIN-Shelter® 2:1, which can be extended on one side, offers a significantly larger usable area and flexibility, both for medical and technical use.

Operation of the ZEPPELIN-Shelter® 2:1 is possible both on a vehicle as well as when lowered to the ground.

Technical Data
Basic dimensions                                      according to DIN ISO 20'
Exterior dimensions (incl. corner fittings)
        Shelter closed                                    Length  6,058 mm
                                                                    Width    2,438 mm
              ISO 668 Size 1C / 1CC                  Height   2,438 mm / 2,591 mm
        Shelter extended                               Length   6,058 mm
                                                                    Width     4,275 mm
               ISO 668 Size1C / 1CC                  Height   2,438 mm / 2,591 mm
Dead weight (depending on version)       approx.  3,800 kg
Gross combination weight                         10,000 kg
